The Waterboy 4HRH1100 is a high-lift 4" Helical Rotor solar pumping system designed for deep bore and high-head water supply applications. With the ability to lift water up to 120 metres and deliver up to 18,360 litres per day, it is suited to rural properties requiring reliable water delivery to high-set tanks, livestock watering systems and remote water points.

This complete solar pumping system combines a stainless steel helical rotor pump with a brushless DC motor, integrated soft start and MPPT controller, adjustable speed and timer control, and four 370W monocrystalline solar panels. Supplied with a heavy-duty cyclone-rated mounting frame and 40 metres of power cable, the 4HRH1100 provides an efficient off-grid pumping solution for rural and remote applications.

Applications

• Deep bore water extraction up to 120m
• High-lift tank filling for livestock or domestic water supply
• Rural and agricultural water transfer
• Stock watering across larger rural properties
• Off-grid water supply for homes, sheds and remote infrastructure
• Solar-powered replacement for conventional pumping systems

Features & Benefits

• 4" stainless steel helical rotor pump designed for high-lift applications
• Brushless DC motor for efficient and reliable operation
• Integrated soft start and MPPT controller
• Adjustable speed control for managing water output
• Adjustable timer control for restart operation
• All-stainless-steel construction
• Lift capacity up to 120m
• Flow rate up to 18,360 litres per day
• Low-water protection for bore kit installations
• Heavy-duty cyclone-rated pole mount frame
• Simple installation with low ongoing maintenance requirements

Pump Performance

*Daily output figures are based on the manufacturer's performance data and approximately 6 hours of sunlight. Actual output will vary depending on sunlight, installation conditions and total dynamic head.

Control Box Features

• Integrated MPPT solar controller
• Soft-start function for smooth motor operation
• Adjustable speed control
• Adjustable restart timer for bore recovery
• LED indicators for system status and operation
• Connection for low-water protection
• Connection for tank-full float or pressure switch
• Automatic solar input tracking and system protection

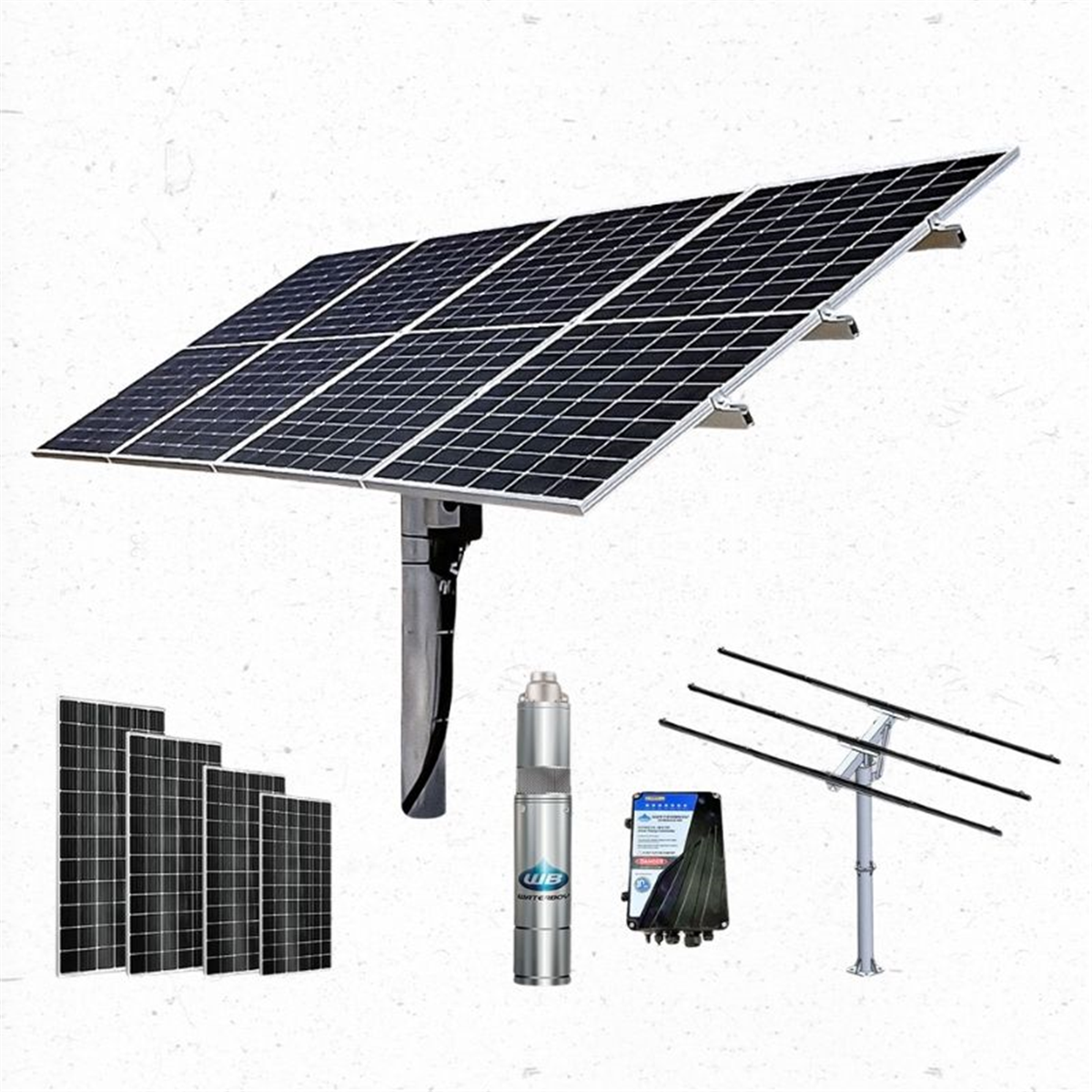

System Includes

• Waterboy 4HRSS-H submersible pump, motor and controller
• 4 × 370W monocrystalline solar panels – 1.48kW total
• Heavy-duty cyclone-rated pole mount frame
• 40m power cable
• Low-water probe and safety cabling
• Bore cap or dam float
• Low-water protection for bore kit installations
• Installation manual

Optional Accessories

• 6101 – Tank switch with 20m cable
• 6045NO – 12 bar pressure switch with gauge and fittings
• 6112 – 1.5" double-acting float valve
• 6014 – 4" HR sacrificial anode, recommended for mineral-rich or corrosive water

Bore & Dam Kit Options

• 4HRH1100-B40 – Bore kit
• 4HRH1100-D40 – Dam floating kit

Warranty

• 4-year warranty on the complete system
• Australian-based Waterboy product support

Product Details

• Model: 4HRH1100
• Product Number: 4HRH1100-B40 / 4HRH1100-D40
