The Waterboy 4HRH800 is a high-lift 4" Helical Rotor solar pumping system designed for reliable water supply in rural and remote locations. With the ability to lift water up to 90 metres and deliver up to 13,680 litres per day, it is well suited to high-set tank filling, livestock watering, bore water extraction and off-grid water supply.

This complete solar pumping system combines a 4" stainless steel helical rotor pump with a brushless DC motor, integrated soft start and MPPT controller, adjustable speed and timer control, and three 370W monocrystalline solar panels. Supplied with a heavy-duty cyclone-rated mounting frame and 40 metres of power cable, the 4HRH800 provides an efficient, low-maintenance water pumping solution where mains power is unavailable.

Applications

• High-lift tank filling for livestock or domestic water supply
• Bore water extraction
• Rural and agricultural water transfer
• Off-grid water supply for homes, sheds and properties
• Irrigation from remote bores or dams
• Solar-powered replacement for conventional pumping systems

Features & Benefits

• 4" stainless steel helical rotor pump for high-lift water delivery
• Brushless DC motor for efficient and reliable operation
• Integrated soft start and MPPT controller
• Adjustable speed control for managing water output
• Adjustable timer control for restart operation
• All-stainless-steel construction
• Lift capacity up to 90m
• Flow rate up to 13,680 L/day
• Low-water protection for bore kit installations
• Heavy-duty cyclone-rated pole mount frame
• Simple installation with low ongoing maintenance requirements

Pump Performance

*Daily output is based on the manufacturer's performance data and approximately 6 hours of sunlight. Actual output will vary depending on sunlight, installation conditions and total dynamic head.

Control Box Features

• Integrated MPPT controller
• Soft-start function to provide smooth motor operation
• Adjustable speed control
• Adjustable restart timer
• LED indicators for system status and operation
• Connection for low-water protection
• Connection for tank-full float or pressure switch
• Automatic voltage regulation and system protection

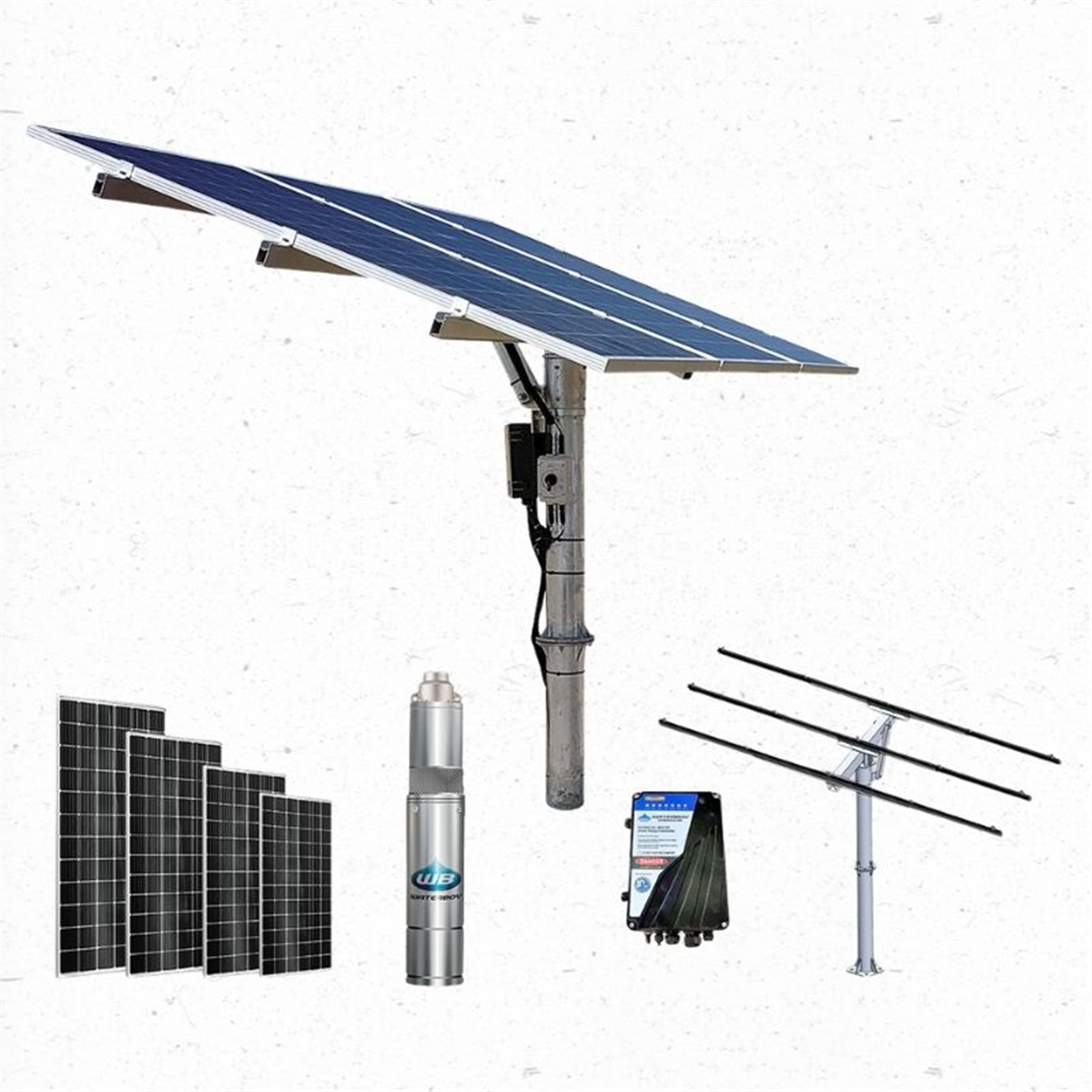

System Includes

• Waterboy 4HRSS-H submersible pump, motor and controller
• 3 × 370W monocrystalline solar panels – 1.11kW total
• Heavy-duty cyclone-rated pole mount frame
• 40m power cable
• Low-water probe and safety cabling
• Bore cap or dam float
• Low-water protection for bore kit installations
• Installation manual

Optional Accessories

• 6101 – Tank switch with 20m cable
• 6045NO – 12 bar pressure switch with gauge and fittings
• 6112 – 1.5" double-acting float valve
• 6014 – 4" HR sacrificial anode, recommended for mineral-rich or corrosive water

Bore & Dam Kit Options

• 4HRH800-B40 – Bore kit
• 4HRH800-D40 – Dam floating kit

Warranty

• 4-year warranty on the complete system
• Australian-based product support

Product Details

• Model: 4HRH800
• Product Number: 4HRH800-B40 / 4HRH800-D40
