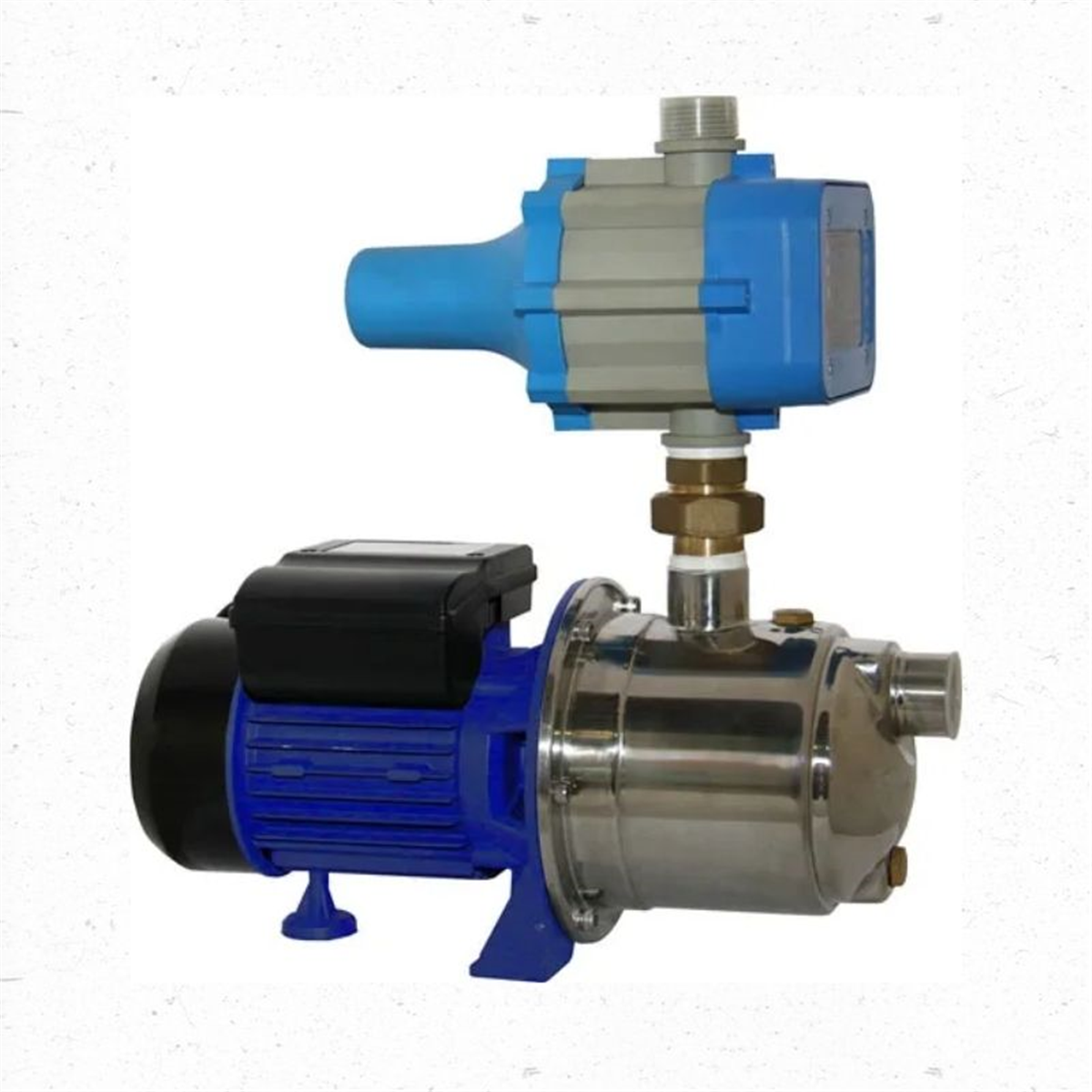

The REEFE WaterPro DJ58 is a self-priming jet pressure pump designed to provide reliable water pressure from rainwater tanks and other clean-water sources.

With an automatic pressure controller, the pump starts when a tap is opened and stops when water demand ceases. The controller also provides run-dry protection and an automatic restart function that checks for water availability after a dry-run event.

The DJ58 is suited to domestic water supply, irrigation, water transfer and pressure boosting applications, making it ideal for a small home, low-set house, shed or workshop. It is suitable for supplying up to 2–4 taps under appropriate operating conditions.

Applications

• Domestic water supply
• Water storage tank pump sets
• Rainwater supply
• Garden irrigation
• Water transfer
• Pressure boosting
• Sheds and small workshops

Features & Benefits

• Self-priming jet pump
• Maximum flow of 55 LPM
• Maximum head of 33m
• Suitable for suction lift applications up to 8m
• Automatic pressure controller provides consistent water pressure
• Run-dry protection helps protect the pump if the water supply runs out
• Automatic restart checks for water availability every 24 hours following a dry-run event
• Suitable for 2–4 taps
• Certified to AS/NZS 4020 for use with potable water
• Quick Plug pressure controller connection
• Thermal overload protection
• Vibration-free operation
• 2-year warranty

Specifications

• Rated Flow: 25 LPM
• Rated Head: 20m
• Maximum Flow: 55 LPM
• Maximum Head: 33m
• Suction Lift: 8m
• Recommended Number of Taps: 2–4
• Motor Power P1: 0.53kW
• Motor Power P2: 0.37kW
• Voltage: 240V
• Current: 2.5A
• Inlet: 25mm / 1" FBSP
• Outlet: 25mm / 1" MBSP
• Cable Length: 1.5m
• Dimensions: 370 × 170 × 330mm
• Ingress Protection: IP44
• Insulation Class: B
• Warranty: 2 years

Construction

• Noryl jet, diffuser and impeller
• Grade 304 stainless steel casing and shaft
• Carbon/ceramic mechanical seals
• Quick Plug pressure controller
• Thermal overload protection
• IP44 motor with Class B insulation

Product Details

• Model: DJ58-2
• Product Number: 12239
