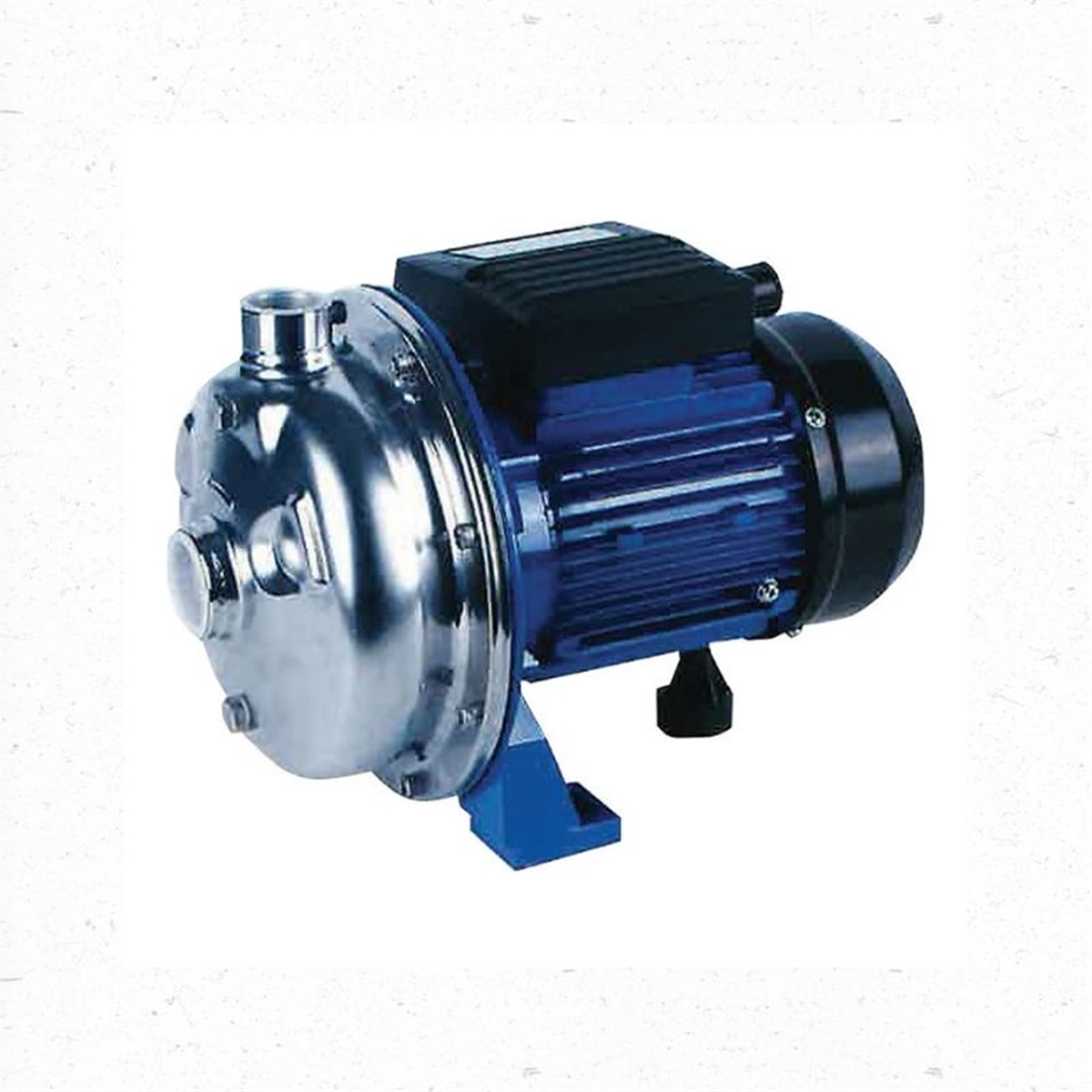

The REEFE RSSC075 is a high-performance, heavy-duty centrifugal pump designed for transferring clean fresh water and clean saltwater. Its Grade 316 stainless steel wet-end provides excellent corrosion resistance, making it suitable for a wide range of domestic, agricultural and industrial water transfer applications.

With a rated flow of 100 LPM at 16.3m head and a maximum flow of 210 LPM, the RSSC075 provides reliable performance for demanding continuous-duty applications.

Applications

• Dairy wash down
• Water transfer
• Hot water transfer
• Chemical dosing
• Saltwater and seawater
• Hot water circulation
• Cooling towers
• Heat exchangers

Features & Benefits

• Grade 316 stainless steel wet-end for excellent corrosion resistance
• Suitable for clean fresh water and clean saltwater
• Continuous-duty operation
• Suitable for liquid temperatures from -20°C to 110°C for the pump only
• Thermal overload protection
• Viton seals and O-rings for corrosion resistance
• Suitable for use with a range of REEFE pump control options
• IP55 ingress protection
• Class F insulation
• Designed for flooded-suction applications – not self-priming

Specifications

• Rated Flow: 100 LPM
• Rated Head: 16.3m
• Maximum Flow: 210 LPM
• Maximum Head: 22.4m
• Motor Input (P1): 1.11kW
• Motor Output (P2): 0.75kW
• Current: 4.2A
• Inlet: 40mm / 1½"
• Outlet: 25mm / 1"
• Suction Lift: No
• Weight: 10.3kg
• Dimensions (L × W × H): 360 × 245 × 280mm
• Ingress Protection: IP55
• Insulation Class: F

Construction

• Single-phase motor
• Grade 316 stainless steel wet-end
• Graphite/silicon-carbide mechanical seal
• Viton seals
• Thermal overload protection
• IP55 protection
• Class F insulation

Pump Control Options

The RSSC075 can be used with:

• REEFE Pressure Controller
• REEFE Pressure Switch and Tank
• REEFE Variable Speed Control

Product Details

• Model: RSSC075
• Product Number: 30790
