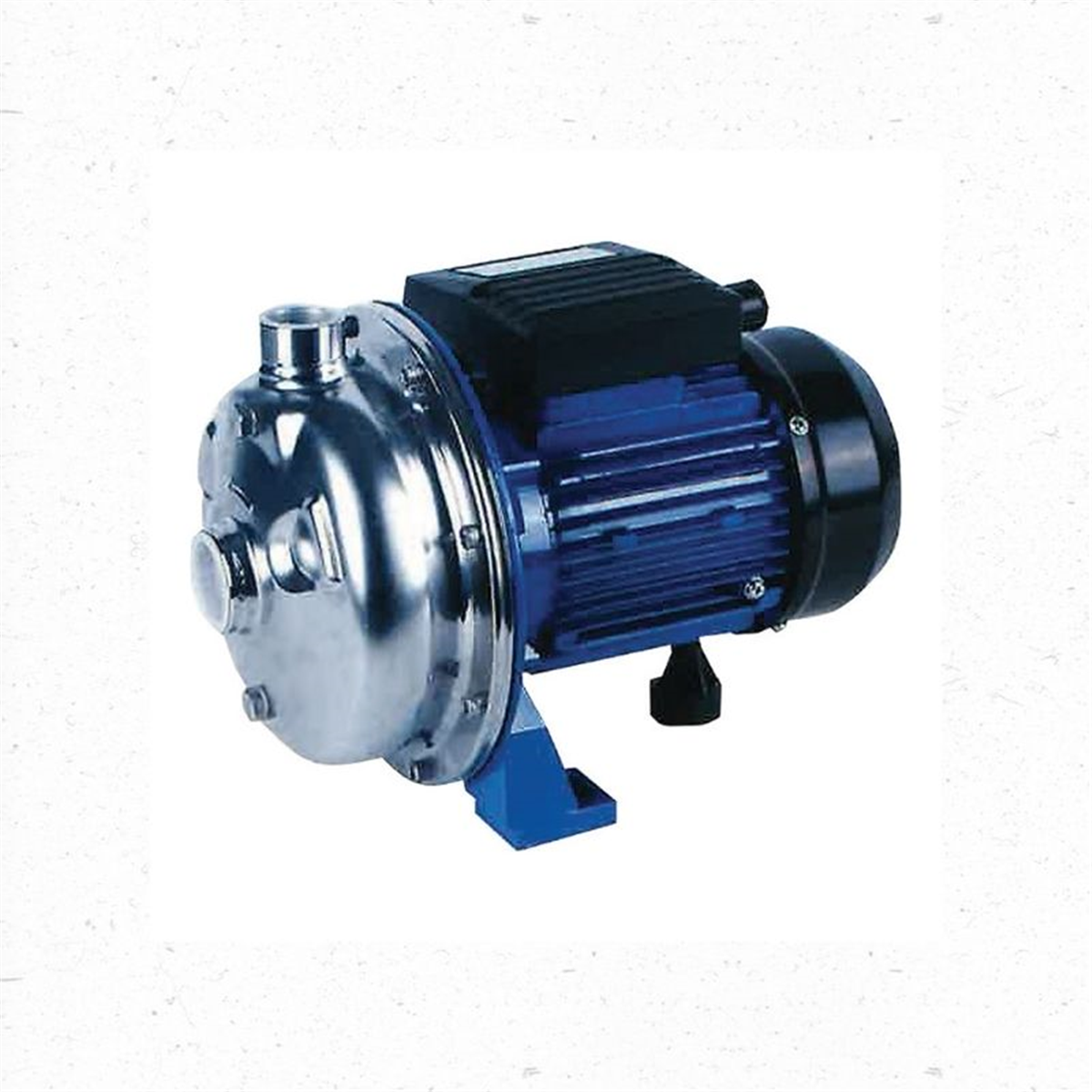

The REEFE RSSC037 is a high-performance, heavy-duty centrifugal pump designed for transferring clean fresh water and clean saltwater. Constructed with a Grade 316 stainless steel wet-end, the RSSC037 provides excellent corrosion resistance and is suitable for demanding water transfer and wash-down applications.

With a maximum flow of 135 LPM and maximum head of 14.8m, the RSSC037 is suitable for continuous-duty applications including dairy wash down, water transfer, hot water transfer, saltwater transfer and industrial water circulation.

Applications

• Dairy wash down
• Water transfer
• Hot water transfer
• Chemical dosing transfer
• Saltwater and seawater transfer
• Hot water circulation
• Cooling towers
• Heat exchangers
• Washing and sprinkling

Features & Benefits

• Grade 316 stainless steel wet-end for excellent corrosion resistance
• Suitable for clean fresh water and clean saltwater
• Continuous-duty operation
• Suitable for liquid temperatures from -20°C to 110°C for the pump only
• Thermal overload protection
• Can be paired with a REEFE pressure controller, pressure switch and tank, or variable speed control
• IP55 ingress protection
• Class F insulation
• No suction lift – designed for flooded-suction applications

Specifications

• Rated Flow: 65 LPM
• Rated Head: 11.5m
• Maximum Flow: 135 LPM
• Maximum Head: 14.8m
• Motor Input (P1): 0.55kW
• Motor Output (P2): 0.37kW
• Current: 2.4A
• Voltage: 240V
• Inlet: 32mm / 1¼"
• Outlet: 25mm / 1"
• Suction Lift: No
• Weight: 7.5kg
• Dimensions (L × W × H): 330 × 190 × 240mm
• Ingress Protection: IP55
• Insulation Class: F

Construction

• Single-phase motor
• Grade 316 stainless steel wet-end
• Stainless steel construction for corrosion resistance
• Graphite/silicon-carbide mechanical seal
• Viton seals and O-rings
• Thermal overload protection
• IP55 protection
• Class F insulation

Pump Control Options

The RSSC037 can be used with:

• REEFE Pressure Controller
• REEFE Pressure Switch and Tank
• REEFE Variable Speed Control

Note: REEFE specifies that controller components are not suitable for saltwater applications.

Product Details

• Model: RSSC037
• Product Number: 17159
