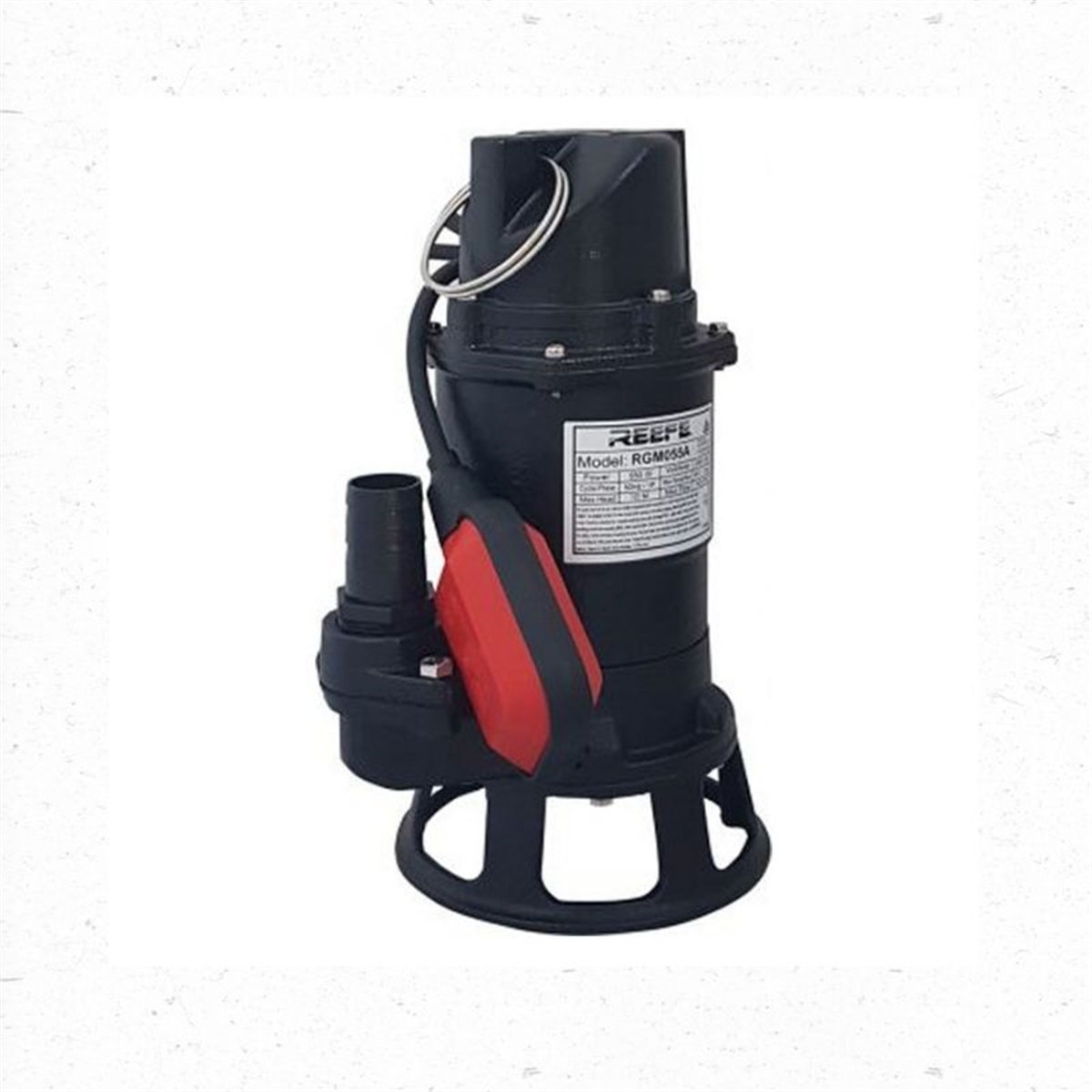

The REEFE RGM055A is a compact automatic grinder pump designed for smaller domestic wastewater projects with short pipe runs. Its compact design makes it ideal for small pits, sumps and narrow pump stations where space is limited.

The grinder pump features an anti-clogging impeller design and automatic float switch for reliable operation. With a maximum flow of 160 LPM and maximum head of 10m, the RGM055A provides an efficient solution for domestic sewage and wastewater applications.

Applications

• Domestic sewage applications
• Waste treatment facilities
• Small pump pits and sumps
• Domestic wastewater systems

Features & Benefits

• Compact design for installation in confined spaces
• Lightweight and portable
• Ideal for narrow pits and sumps
• Anti-clogging impeller design
• Automatic float switch for automatic operation
• Suitable for liquid temperatures from 0°C to 40°C
• Suitable for liquids with a pH range of 6–8
• Electrical safety approval to AS/NZS 60335.2.41
• Designed for domestic applications
• 10m power cable

Specifications

• Operation: Automatic
• Motor Input (P1): 0.72kW
• Motor Output (P2): 0.55kW
• Current: 3.7A
• Maximum Flow: 160 LPM
• Maximum Head: 10m
• Outlet: 32mm
• Cable Length: 10m
• Weight: 13kg
• Dimensions (L × W × H): 175 × 210 × 335mm
• Liquid Temperature: 0°C to 40°C
• pH Range: 6–8
• Ingress Protection: IP68

Construction

• Abrasion-resistant construction
• Anti-clogging grinder impeller
• Carbon-ceramic mechanical seal
• IP68 motor protection
• Automatic float switch
• Auto-coupling kits are not available for this model

Product Details

• Model: RGM055A
• Product Number: 15629
