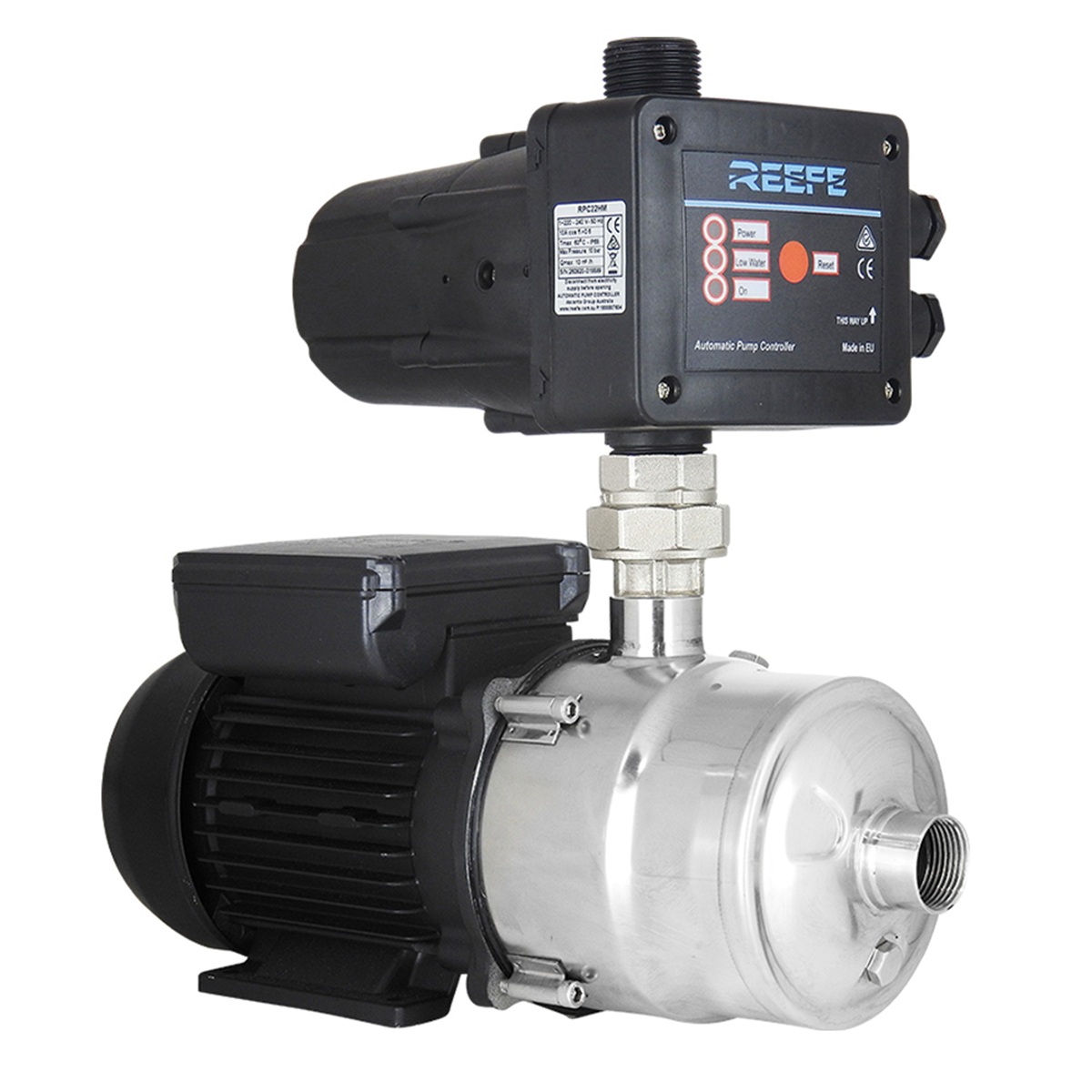

The REEFE RHMS52-110 is a horizontal multistage pressure pump designed for reliable, high-pressure water supply in domestic and commercial applications.

Featuring a heavy-duty 304 stainless steel housing, stainless steel impellers and an automatic pressure controller with run-dry protection, the RHMS52-110 provides automatic water pressure control with quiet and efficient operation.

With a rated performance of 48 LPM at 40m head and a maximum flow of 110 LPM, it is suitable for medium to large homes, irrigation systems, stock watering and commercial water supply applications.

Applications

• Whole-house water supply
• Apartment blocks
• Amenities blocks
• Hotels and restaurants
• Irrigation supply
• Stock watering systems
• Domestic and commercial pressure boosting

Features & Benefits

• Horizontal multistage pump design
• Maximum flow of 110 LPM
• Maximum head of 52m
• Rated flow of 48 LPM at 40m head
• European automatic pressure controller
• Built-in run-dry protection
• Quiet operating design
• Lower power consumption for efficient operation
• Heavy-duty 304 stainless steel housing
• Stainless steel impellers
• Noryl/fibreglass diffusers
• Built-in thermal overload protection
• Quick Plug pressure controller connection
• Brass barrel union
• IP44 protection
• Class F motor insulation
• Maximum liquid temperature of 35°C

Specifications

• Rated Flow: 48 LPM
• Rated Head: 40m
• Maximum Flow: 110 LPM
• Maximum Head: 52m
• Recommended Number of Taps: 5–8
• Motor Input (P1): 1.24kW
• Motor Output (P2): 0.8kW
• Voltage: 240V
• Current: 5.4A
• Inlet: 25mm / 1"
• Outlet: 25mm / 1"
• Cable Length: 1.5m
• Weight: 11.5kg
• Dimensions (L × W × H): 372 × 155 × 339mm
• Maximum Liquid Temperature: 35°C
• Ingress Protection: IP44
• Insulation Class: F

Construction

• Heavy-duty 304 stainless steel housing
• Stainless steel impellers
• Noryl/fibreglass diffusers
• Brass barrel union
• Built-in thermal overload protection
• Automatic pressure controller with run-dry protection
• Quick Plug connection
• IP44 motor with Class F insulation

Product Details

• Model: RHMS52-110
• Product Number: 21712
