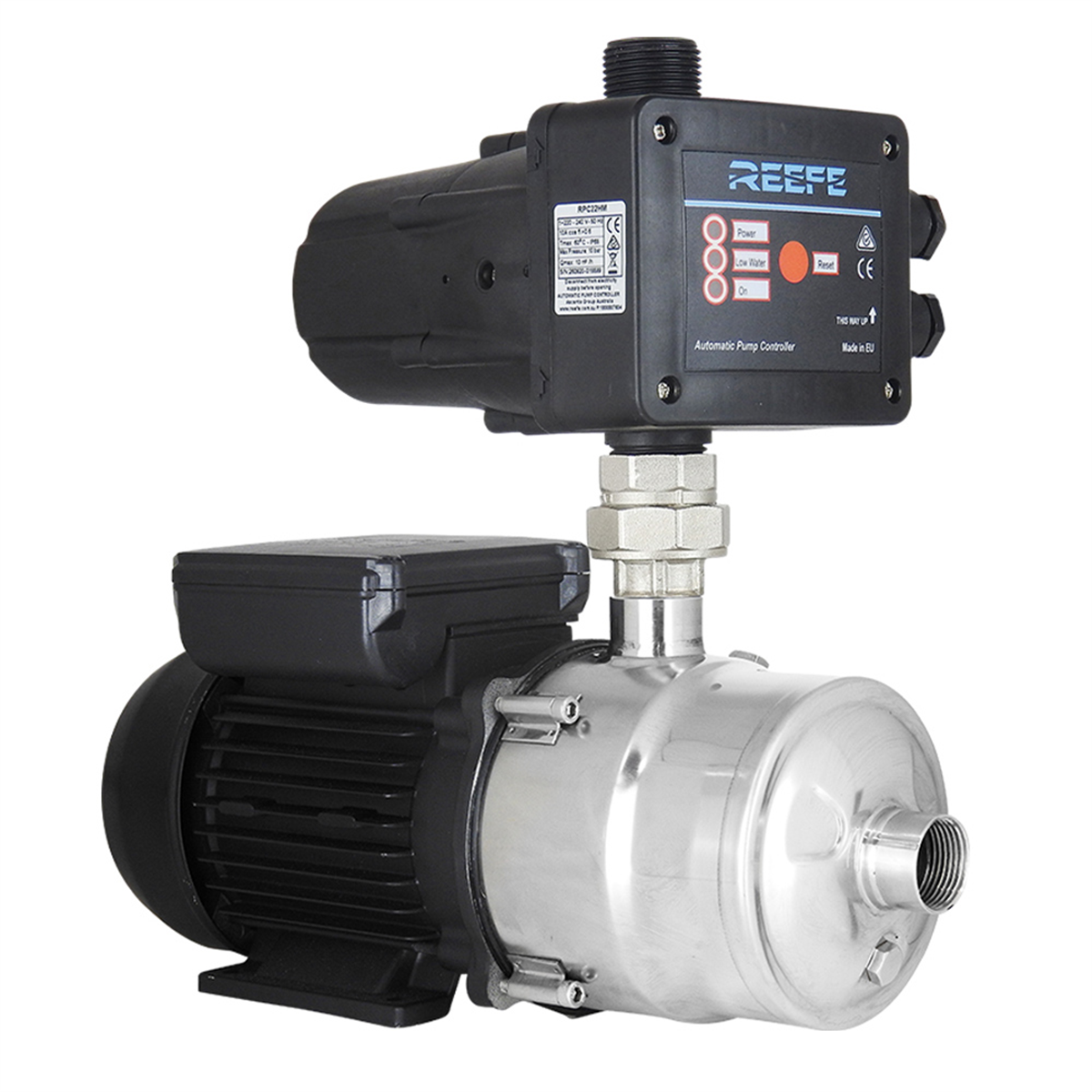

The REEFE RHMS50-175 is a high-performance horizontal multistage pressure pump designed for reliable water supply in demanding domestic and commercial applications.

With a maximum flow of 175 LPM and maximum head of 50m, the RHMS50-175 is suited to larger water supply requirements, including whole-house water supply, apartment blocks, irrigation systems, stock watering and commercial applications.

The pump combines a heavy-duty 304 stainless steel housing with stainless steel impellers, Noryl/fibreglass diffusers and an automatic pressure controller with run-dry protection. Its multistage design provides efficient, quiet operation for dependable water pressure. (reefe.com.au)

Applications

• Whole-house water supply
• Apartment blocks
• Amenities blocks
• Hotels and restaurants
• Irrigation supply
• Stock watering systems
• Domestic and commercial pressure boosting

Features & Benefits

• Horizontal multistage pressure pump
• Maximum flow of 175 LPM
• Maximum head of 50m
• Rated flow of 88 LPM at 40m head
• European automatic pressure controller
• Built-in run-dry protection
• Quiet operating design
• Designed for efficient operation
• Heavy-duty 304 stainless steel housing
• Stainless steel impellers
• Noryl/fibreglass diffusers
• Built-in thermal overload protection
• Quick Plug pressure controller connection
• Brass barrel union
• IP44 protection
• Class F motor insulation
• Maximum liquid temperature of 35°C (reefe.com.au)

Specifications

• Rated Flow: 88 LPM
• Rated Head: 40m
• Maximum Flow: 175 LPM
• Maximum Head: 50m
• Recommended Number of Taps: 8–14
• Motor Power: 1.1kW
• Current: 8.9A
• Voltage: 240V
• Inlet: 32mm / 1¼"
• Outlet: 32mm / 1¼"
• Cable Length: 1.5m
• Weight: 14.75kg
• Dimensions (L × W × H): 436 × 191 × 372mm
• Maximum Liquid Temperature: 35°C
• Ingress Protection: IP44
• Insulation Class: F (reefe.com.au)

Construction

• Heavy-duty 304 stainless steel housing
• Stainless steel impellers
• Noryl/fibreglass diffusers
• Brass barrel union
• Built-in thermal overload protection
• European automatic pressure controller with run-dry protection
• Quick Plug connection
• IP44 motor with Class F insulation (reefe.com.au)

Product Details

• Model: RHMS50-175
• Product Number: 21736
