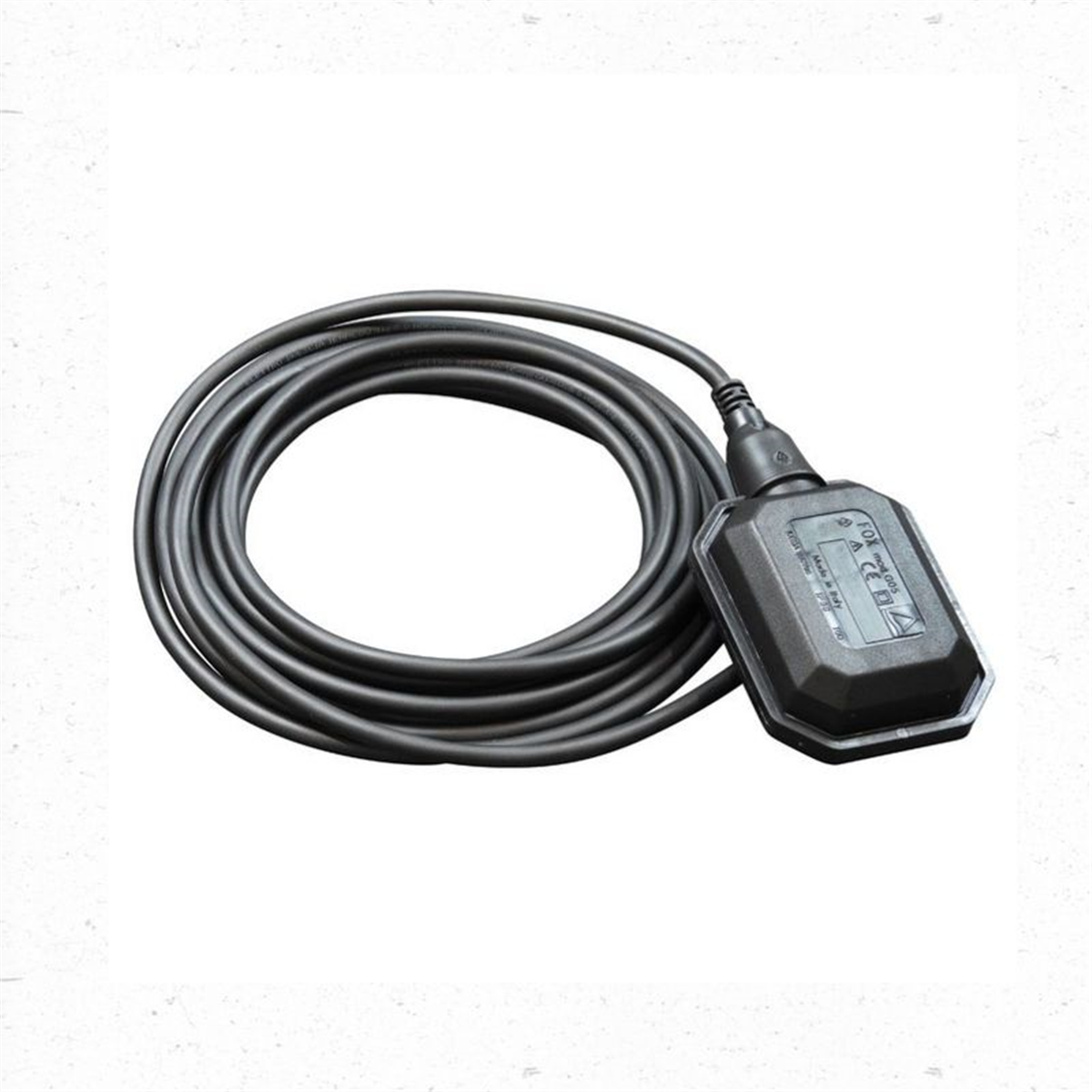

The REEFE FS05 is a reliable double-function float switch designed for automatic water level control and pump system applications. With a 5m neoprene cable, adjustable counterweight and IP68 protection, it is suitable for use in water, sewage and stormwater environments.

The FS05 can be configured for close-on-rise or close-on-fall operation, providing flexible control for pump-out, tank-fill and low-level sensing applications. Its switch design helps prevent corrosion-related shorts by keeping the internal ball mechanism isolated from electrical contacts.

Applications

• Pump-out and tank-fill control
• Sewage and stormwater stations
• High-level alarm switching
• Run-dry protection and low-level sensing
• Tank level control
• Automatic water level control

Features & Benefits

• Double-function float switch
• 5m heavy-duty neoprene cable
• Adjustable counterweight for flexible installation
• Can be configured for close-on-rise or close-on-fall operation
• Corrosion-resistant switch design
• Suitable for sewage and stormwater environments
• IP68 protection
• Suitable for temperatures up to 45°C
• Designed for integration with suitable pump control equipment

Specifications

• Model: FS05
• Cable Length: 5m
• Cable: H07RN-F, Ø7.5mm
• Function: Double
• Casing: Polypropylene
• Counterweight: 230g
• Power Rating: Maximum 10 (8)A, 240V
• Activation Angle: 45°
• Maximum Depth: 10m
• Maximum Temperature: 45°C
• Protection Grade: IP68

Construction

• H07RN-F neoprene cable
• Polypropylene float casing
• Adjustable 230g counterweight
• Double-function switching mechanism
• IP68-rated construction

Important: The FS05 is designed for use with appropriate pump and control equipment and is not intended for direct switching of pumps or high-voltage equipment. REEFE identifies dedicated FS105 and FS110 models for direct 240V switching applications.

Product Details

• Model: FS05
• Product Number: 20630
