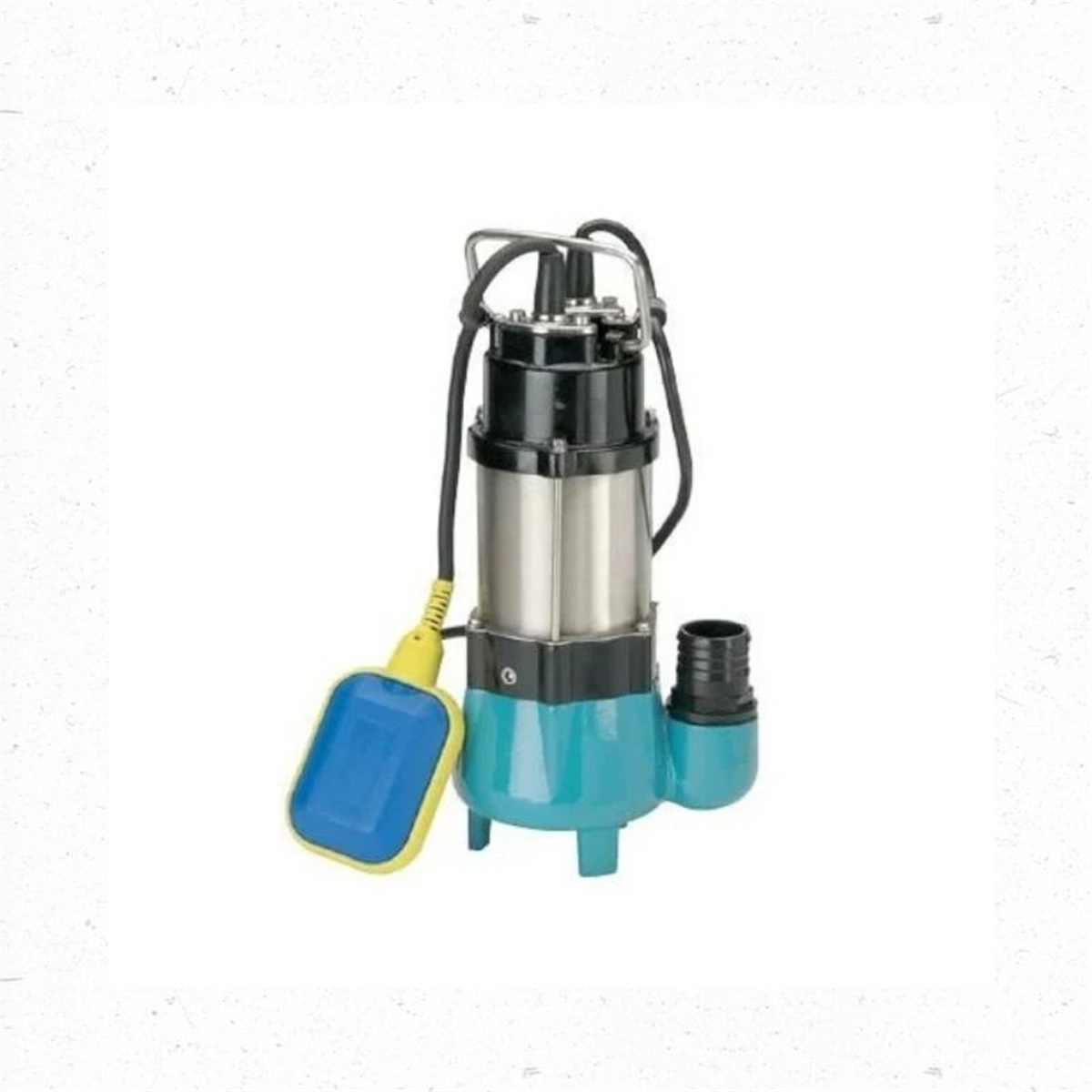

The Onga VF150 is a vertical, single-stage submersible drainage pump designed for the disposal of wastewater, rainwater, septic effluent and grey water. Its vortex impeller allows it to handle soft solids up to 15mm in diameter.

The pump features a corrosion-resistant 304 stainless steel motor casing, polycarbonate vortex impeller and automatic operation.

Features & Benefits

• Maximum flow capacity of up to 150 LPM
• Handles soft solids up to 15mm
• Suitable for wastewater, rainwater and grey water
• Polycarbonate vortex impeller
• 304 stainless steel motor casing
• Carbon ceramic mechanical seal and lip seal
• Automatic float switch operation
• IP68 protection
• Suitable for continuous operating temperatures from 1–40°C
• 10m power cable

Specifications

• Maximum Flow: 150 LPM
• Maximum Head: 7m
• Maximum Water Temperature: 40°C
• Maximum Submergence: 6m
• Maximum Soft Solids: 15mm
• Discharge: 1¼" BSP female
• Motor Input: 350W
• Motor Output: 180W
• Voltage: 230V
• Frequency: 50Hz
• Current: 1.75A
• Speed: 2850 RPM
• IP Rating: IP68
• Insulation Class: F
• Cable Length: 10m

Product Details

• Model: VF150
