Jacky Bin Side Discharge 1730L

[Shipping not available online - please contact our store for freight options.]

Model LA1500/8

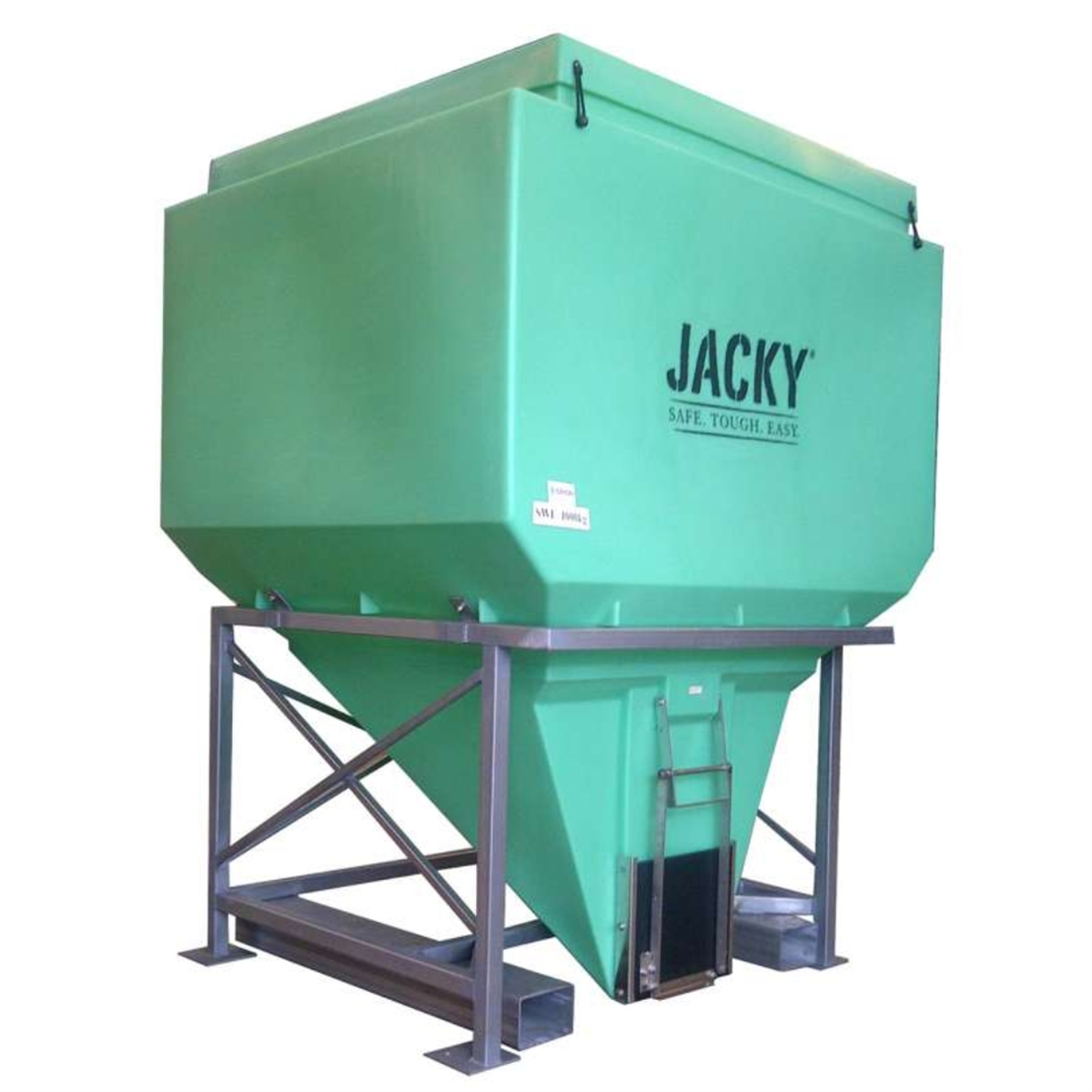

The Side Discharge JACKY® Bin design incorporates a poly hopper
mounted on a forkliftable steel base.
The LA1500/8 Side Discharge JACKY® Hopper Bin design incorporates
a poly hopper mounted in a fork-liftable steel stillage. The bin empties
through a side opening at the base of the bin, with the slide-hatch
mechanism allowing precise control of the discharge rate.

BENEFITS
1200kg/1.73m3 capacity.
Safe Working Load (SWL) - 1200kg.
Very low profile bin for height critical applications.
Ideal for feed and seed storage.
Large top opening for easy filling and cleaning.
All working parts are UV stabilised polyethylene or stainless steel for
longevity.
40° run slope allows the discharge rate of most granular products to be
easily controlled.
Standard colour is Faint Green.
Serial numbering and custom branding available to assist in tracking
batch lots.

SPECIFICATIONS
Code LA1500/8
Length 1400mm
Width 1200mm
Height 1860mm
Opening size - base 295x245mm
Opening size - top 1000x1000mm
Fork Pocket size 150x100mm
Fork Pocket Centres 830mm
Capacity 1730
