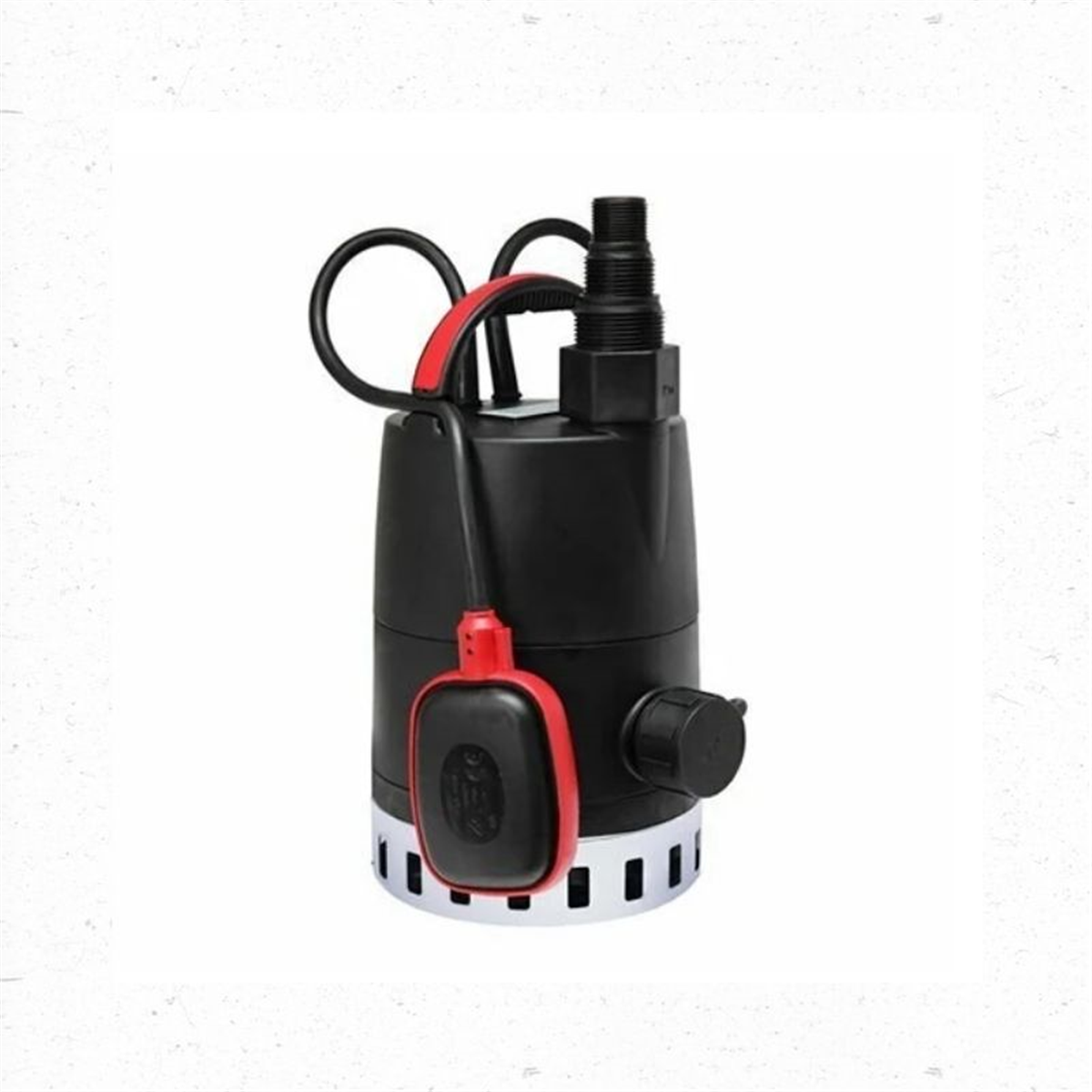

The Grundfos Unilift CC9-A1 is a compact, single-stage submersible drainage pump designed for efficiently pumping rainwater and grey wastewater. The pump can drain water down to a level of approximately 3 mm, making it ideal for a range of domestic and general drainage applications.

The Unilift CC9-A1 features an open impeller design that allows free passage of solids up to 10 mm in diameter. It is suitable for clean, non-aggressive water and slightly dirty grey wastewater.

Its compact design makes it suitable for use in low-lying areas of buildings, cellars, wells and collecting pits, as well as swimming pools, ponds and fountains. The pump provides a practical solution for removing unwanted water from a variety of locations.

Applications

The Unilift CC9-A1 is suitable for:

• Draining water from washing machines, baths and sinks in low-lying areas
• Removing water from cellars and flood-prone buildings
• Draining wells
• Collecting wells for surface water
• Water from roof gutters and tunnels
• Swimming pools
• Ponds and fountains
• General rainwater drainage
• Grey wastewater drainage

Suitable Liquids

• Clean, non-aggressive water
• Slightly dirty grey wastewater

Features & Benefits

• Flow rate: Up to 170 LPM
• Single-stage submersible drainage pump
• Pumps water down to approximately 3 mm residual water level
• Open impeller design
• Handles solids up to 10 mm
• Suitable for rainwater and grey wastewater
• Compact and practical design
• Suitable for a wide range of domestic drainage applications

Not Suitable For

The Unilift CC9-A1 should not be used for:

• Liquids containing long fibres
• Flammable liquids such as oil or petrol
• Aggressive liquids

Important: If the pump has been used for liquids other than clean water, flush the pump thoroughly with clean water immediately after use.

Product Details

Model: Unilift CC9-A1

Product Number: 96280976
