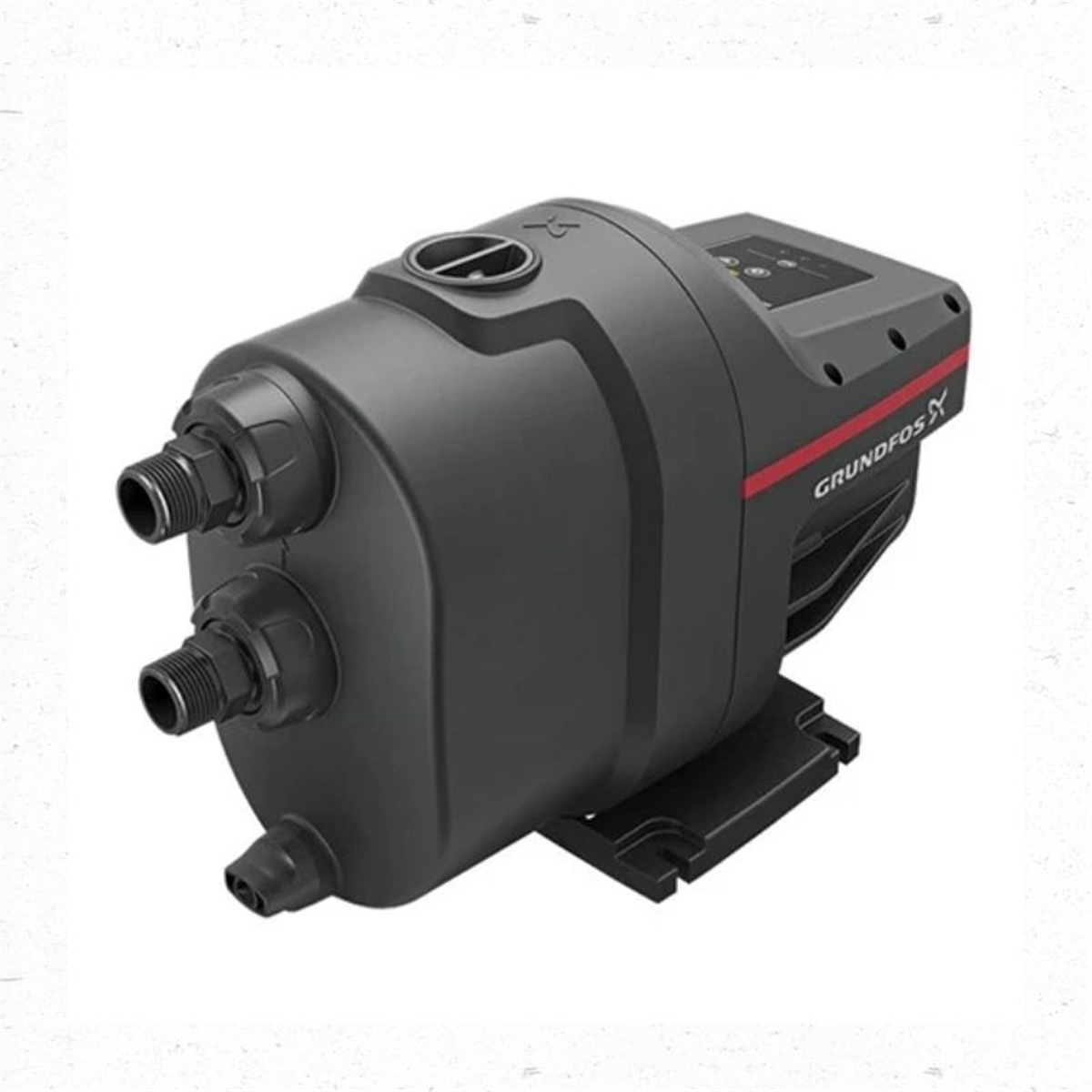

Grundfos SCALA1 3-45 Self Priming Booster Pump - 85 LPM

The Grundfos SCALA1 3-45 is an all-in-one, self-priming pressure booster pump designed to provide reliable water pressure for domestic applications.

The compact design combines the pump, motor and controller in a single unit, making installation straightforward. The SCALA1 can draw water from sources up to 8 metres below the pump and provides automatic pressure boosting for applications such as rainwater, tanks and domestic water supply.

Bluetooth connectivity and the Grundfos GO app allow the pump to be monitored and controlled from a compatible mobile device.

Applications

• Domestic water pressure boosting
• Rainwater systems
• Water supply from storage tanks
• Garden irrigation
• Domestic water transfer
• Pressure boosting from below pump level

Features & Benefits

• Self-priming: Designed to draw water from sources up to 8 metres below the pump.
• All-in-one design: Pump, motor and controller are integrated into a compact unit.
• Automatic operation: Provides automatic start and stop based on system demand.
• Bluetooth connectivity: Connect to the pump using the Grundfos GO app.
• Twin booster capability: Can be configured as a twin-booster system for increased flow requirements.
• Compact installation: Designed for straightforward plug-and-pump installation.
• Quiet operation: Maximum sound pressure level of 55 dB(A).
• Weather-resistant enclosure: Suitable for outdoor installation.
• Composite construction: Pump housing and impeller are made from composite materials.
• Drinking-water suitability: Australian models have relevant drinking-water approvals including AS 4020.

Specifications

• Model: SCALA1 3-45
• Product Number: 99530420
• Maximum Flow: 60 LPM
• Rated Flow: 3.0 m³/h
• Rated Head: 29.2 m
• Maximum Head: 44 m
• Start Pressure: 2.2 bar
• Maximum Operating Pressure: 8 bar
• Maximum Inlet Pressure: 3 bar
• Maximum Suction Lift: 8 m
• Motor Rated Power (P2): 0.58 kW
• Maximum Power Input (P1): 900 W
• Power Supply: 1 × 230 V, 50 Hz
• Rated Current: 3.85 A
• Inlet: 1"
• Outlet: 1"
• Pump Housing: Composite
• Impeller: Composite
• Liquid Temperature: 0–45°C
• Ambient Temperature: 0–55°C
• Enclosure Class: IPX4D
• Insulation Class: F
• Power Cable: 1.5 m
• Plug: Australian Type I
• Sound Pressure: Maximum 55 dB(A)
• Net Weight: 12 kg

Product Details

• Model: SCALA1 3-45
• Product Number: 99530420
