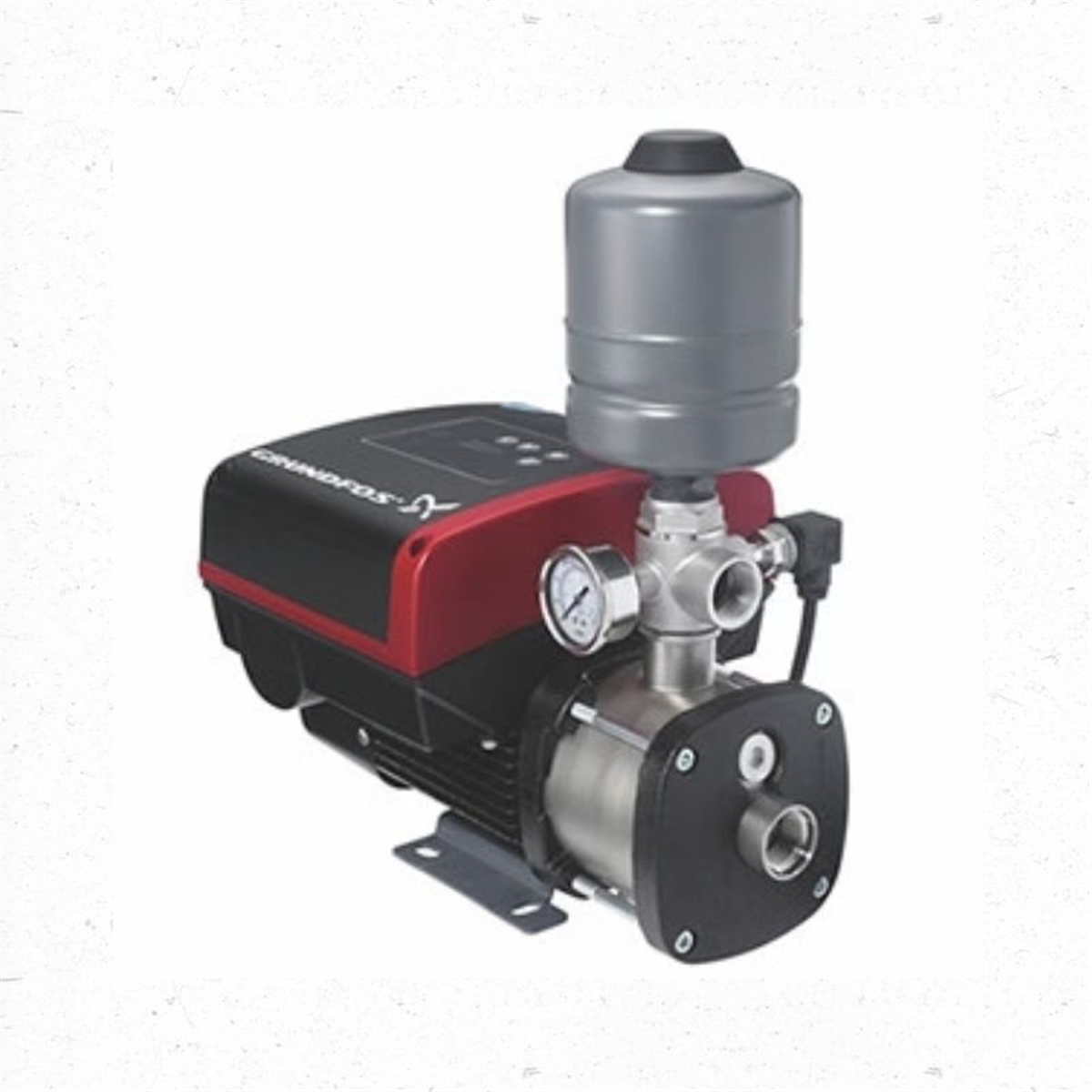

Grundfos CMBE3-62 Variable Speed Pump - 95 LPM

The Grundfos CMBE 3-62 is a compact variable-speed pressure booster pump designed to provide constant water pressure for domestic and light commercial applications. The integrated frequency converter automatically adjusts pump speed to match water demand, helping maintain consistent pressure while reducing unnecessary energy consumption.

The pump features a stainless steel hydraulic section and integrated electronic controls, making it a convenient solution for pressure boosting from tanks and mains water systems.

Applications

• Domestic water supply
• Mains water pressure boosting
• Pressure boosting from above-ground water tanks
• Light commercial and industrial applications

Features & Benefits

• Variable-speed operation
• Constant pressure control
• Integrated frequency converter
• Automatic adjustment to changing water demand
• Stainless steel pump housing and impellers
• Integrated dry-running protection
• Built-in thermal motor protection
• User-friendly control interface
• Compact design
• Suitable for 240V single-phase supply

Specifications

• Pump type: Variable-speed multistage booster pump
• Rated flow: 4.2 m³/h (70 L/min)
• Rated head: 45.2 m
• Number of impellers: 4
• Motor power: 1.1 kW
• Supply voltage: 1 x 200–240 V
• Frequency: 50 Hz
• Pump housing: Stainless steel, AISI 304
• Impellers: Stainless steel, AISI 304
• Pump connections: Rp 1"
• Maximum ambient temperature: 55°C
• Return valve: Yes
• Control: Integrated frequency converter
• Approvals: CE, RCM

Product Details

• Model: CMBE3-62
• Product Number: 98374709
