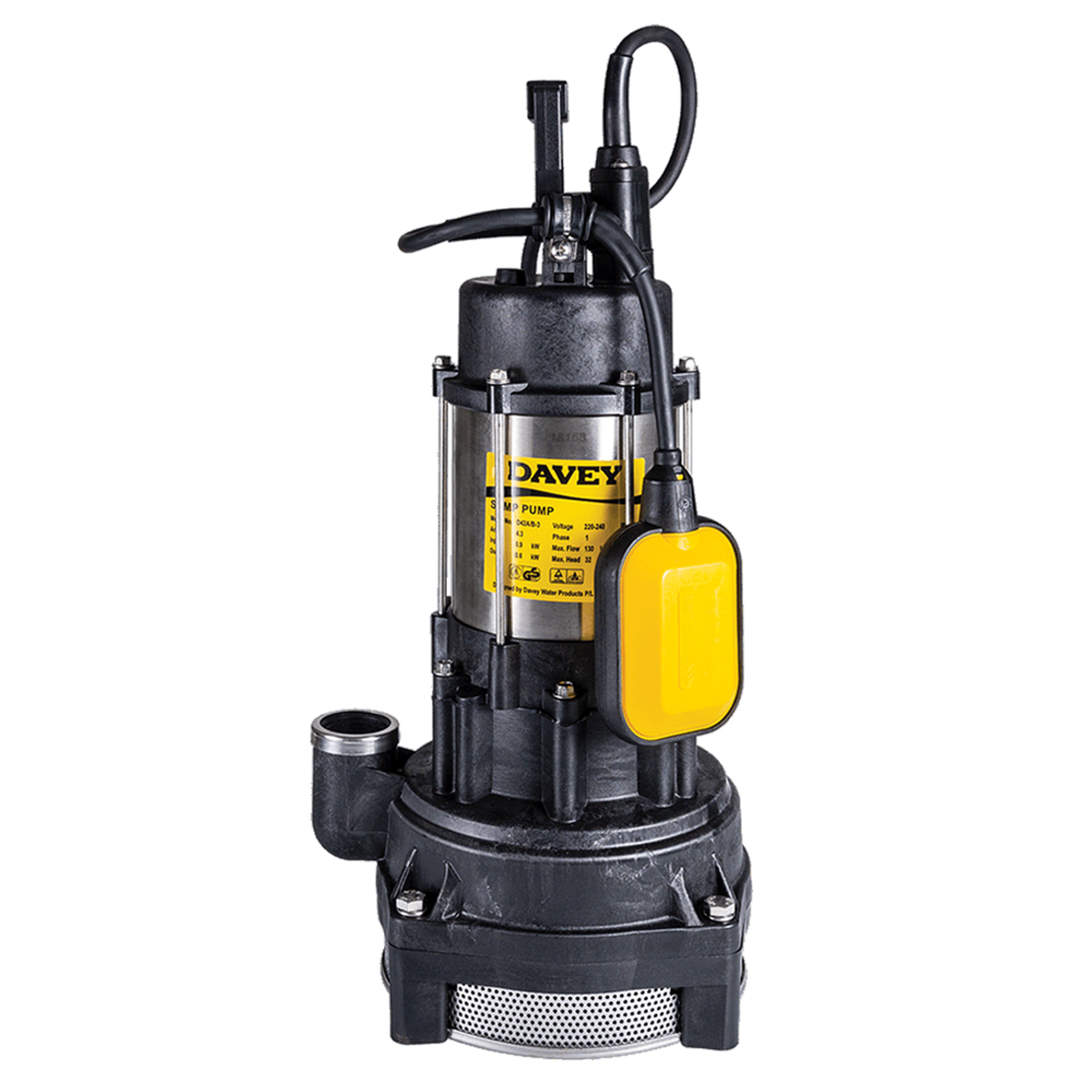

The Davey D42A/B20 is a high-pressure submersible sump pump designed for drainage, water transfer and non-potable rainwater applications. Its multistage centrifugal design provides higher pressure performance than a standard drainage pump, making it suitable for applications where water needs to be transferred to a greater height.

The pump features stainless steel components, a double mechanical seal and automatic thermal overload protection for reliable operation in demanding drainage applications.

Applications

• Sump and pit emptying
• Non-potable rainwater
• Lawn and garden irrigation
• Treated effluent disposal
• Water transfer from wells
• Floodwater removal
• Swimming pool emptying

Features & Benefits

• Maximum flow of 120 L/min
• Maximum head of 32 m
• Multistage centrifugal design
• 2-stage impeller configuration
• Double mechanical seal
• 304 stainless steel shaft, motor shell and fasteners
• Cast 316 stainless steel motor caps
• Tough engineered thermoplastic pump casing
• Glass-filled polycarbonate impeller
• Automatic thermal overload protection
• Suitable for submersible installation
• Maximum submergence of 12 m

Specifications

• Pump type: High-pressure submersible sump pump
• Maximum flow: 120 L/min
• Maximum head: 32 m
• Number of stages: 2
• Maximum submergence: 12 m
• Maximum water temperature: 40°C
• Maximum soft solids: 1.9 mm OD
• Outlet: 1" female BSP
• Impeller: Glass-filled polycarbonate
• Shaft: 304 stainless steel
• Motor shell: 304 stainless steel
• Motor caps: Cast 316 stainless steel
• Mechanical seal: Double mechanical seal
• Motor protection: Automatic thermal overload

Product Details

• Model: D42A/B20
