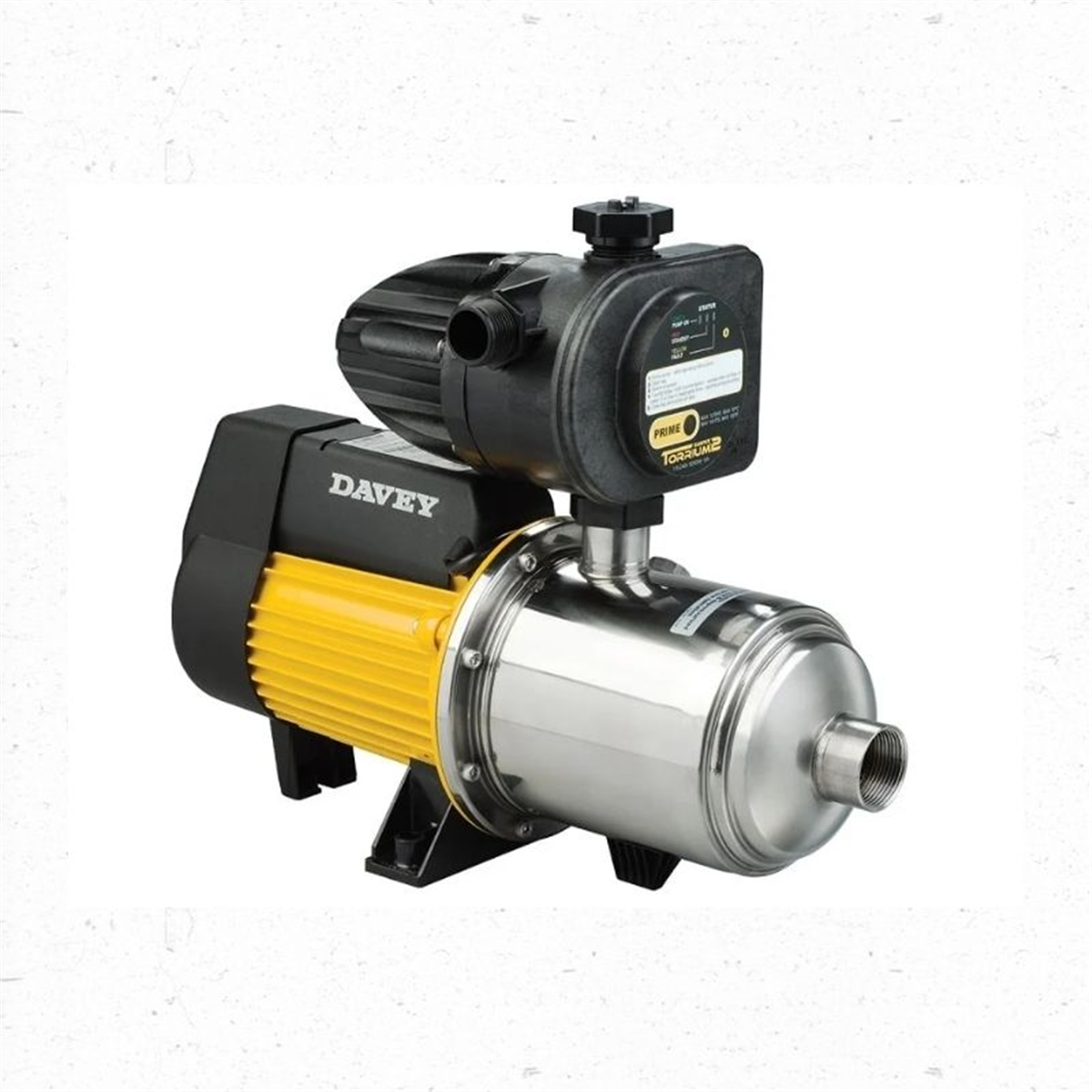

The Davey HM60-08T is a premium horizontal multistage pressure system fitted with a Torrium2 intelligent controller. Designed for domestic water supply and pressure boosting, it provides automatic operation and consistent water pressure for homes with higher pressure requirements.

The HM60-08T features stainless steel pump and hydraulic components, a compact horizontal design and a Davey-built TEFC motor. The Torrium2 controller automatically starts and stops the pump according to water demand.

Applications

• Domestic water supply
• Household pressure boosting
• Irrigation and turf watering
• Water transfer
• Tank and reservoir supply
• Agricultural water systems
• Commercial washing applications

Features & Benefits

• Maximum flow of 80 L/min
• Maximum pressure of 575 kPa
• Horizontal multistage centrifugal pump
• Torrium2 intelligent controller
• All stainless steel hydraulic components
• Corrosion and wear resistant construction
• Axial suction and vertical discharge
• Compact design
• Stainless steel high-efficiency impellers
• Air purging valve for easier priming
• TEFC electric motor
• Built-in thermal overload protection with automatic reset
• 1.8 m power lead with Australian 3-pin plug
• AS/NZS 4020 tested for contact with drinking water

Specifications

• Pump type: Horizontal multistage centrifugal pressure system
• Maximum flow: 80 L/min
• Maximum pressure: 575 kPa
• Motor power (P2): 0.72 kW
• Inlet: 1¼" female BSP
• Outlet: 1" male BSP
• Pump construction: Stainless steel
• Impellers: Stainless steel
• Motor: Totally enclosed fan cooled (TEFC)
• Controller: Torrium2
• Power lead: 1.8 m
• Plug: Australian 3-pin
• Thermal overload: Automatic reset
• Water suitability: Clean water, suitable for potable water applications
• Warranty: 24 months

Product Details

• Model: HM60-08T
