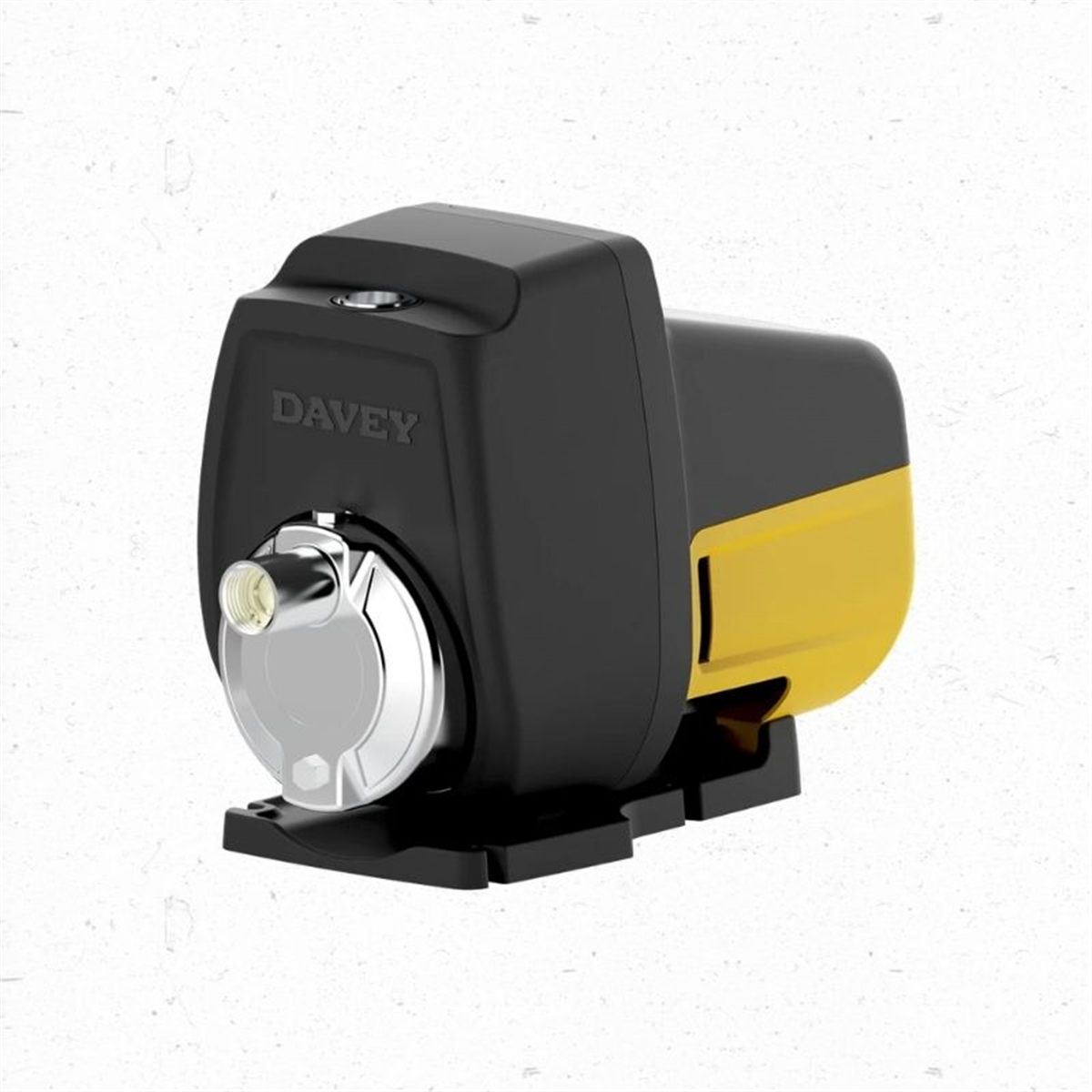

The Davey EvoDrive ED60-09 is a premium constant pressure pump designed to provide consistent water pressure throughout the home. Unlike traditional fixed-speed pumps, the EvoDrive uses advanced Variable Speed Drive (VSD) technology to automatically adjust the motor speed to match water demand.

The result is smooth, consistent pressure whether you are using a single tap, showering, watering the garden or running multiple outlets at once. The EvoDrive is particularly suited to medium to large homes supplied from rainwater tanks, storage tanks or requiring pressure boosting.

Built with a 304 stainless steel pump casing, shaft and impellers, the EvoDrive combines durable construction with a quiet and efficient permanent magnet motor. It also features an illuminated digital touch panel for easy adjustment of pressure settings and monitoring of system status and fault warnings.

Applications

• Boosting water pressure in medium to large homes
• Supplying clean water from rainwater tanks and storage tanks
• Pressure boosting from mains water via an appropriate isolation tank or backflow prevention arrangement
• Multiple bathroom and household water supply
• Dual pump installations for duty/standby or assist operation

Features & Benefits

• Variable Speed Drive (VSD) provides constant water pressure
• Automatically adjusts pump speed to match water demand
• Adjustable pressure settings
• Illuminated digital touch panel
• On-screen fault warnings
• Dry-run protection
• Loss-of-prime protection
• Over-temperature protection
• Quiet and efficient permanent magnet motor
• 304-grade stainless steel pump casing, shaft and impellers
• Suction lift up to 4 m
• Plug-and-pump installation
• Suitable for dual pump duty/standby or assist operation
• Compact design
• 24-month Davey warranty

Specifications

• Pump type: Variable speed constant pressure pump
• Maximum flow: 105 L/min
• Maximum pressure: 700 kPa (7 bar)
• Default pressure setting: 300 kPa, adjustable
• Motor power: 0.90 kW
• Supply voltage: 220–240 V
• Frequency: 50–60 Hz
• Maximum suction lift: 4 m
• Operating water temperature: 3–70°C
• Ambient temperature: 0–50°C
• Inlet: 1" BSP female
• Outlet: 1" BSP female
• Pump casing: 304 stainless steel
• Impellers: 304 stainless steel
• Shaft: 304 stainless steel
• Stages: Stainless steel
• Diffusers: Noryl
• Mechanical seal: Silicon carbide / carbon
• Pressure tank: Pre-charged to 1.8–2 bar
• Enclosure class: IPX5
• Warranty: 24 months

Product Details

• Model: ED60-09
